Babban -Ƙarfin Shell da Tube Heat Exchange (Evaporator & Condenser)

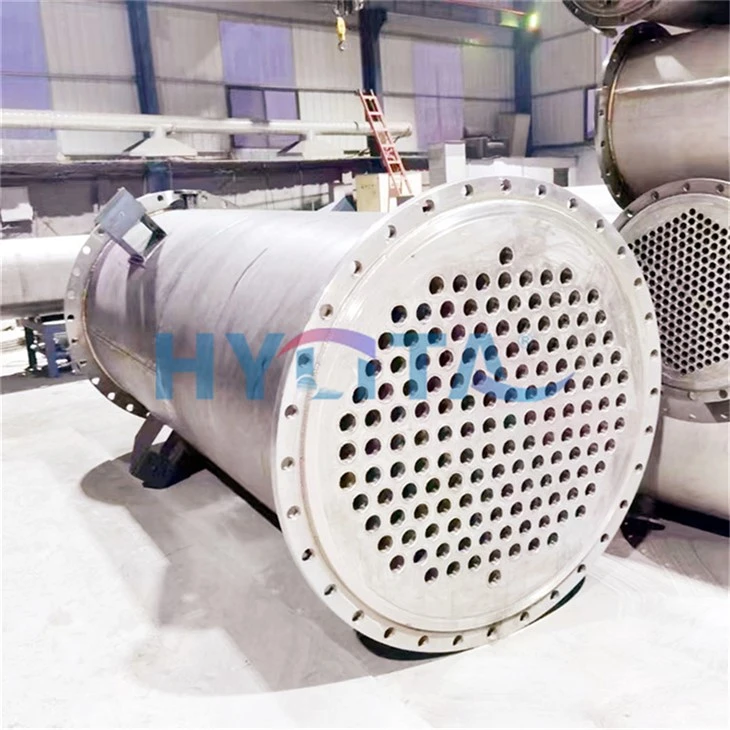

Babban {{0}Maɗaukakin Shell da Tube Condenser don Ƙarfafa Wutar Lantarki. Harsashi da na'urar bututu, maɓalli mai mahimmanci a cikin shuke-shuken wutar lantarki, suna ɗaukar ƙira mai musayar zafi na tubular tare da ɗigon bututun da aka shirya don haɓaka haɓakar natsuwa. An gina shi daga bututun tagulla na admiralty (70/30 jan karfe -nickel) da harsashi na ƙarfe na carbon, yana jure matsi har zuwa 2.5 MPa da yanayin zafi ya kai digiri 150. Kunshin bututu yana fasalta bututun OD na 19mm da aka yi nisa a cibiyoyin 25.4mm, yana ba da wurin canja wurin zafi na 500-2000 m². A cikin sake zagayowar wutar lantarki, yana ƙaddamar da tururi mai ƙyalƙyali a 50-200 kg / s, yana rage matsi na turbine da haɓaka inganci da 3-5%. Tsarinsa na tsaye yana rage girman filin bene yayin da yake haɓaka aikin musayar zafi don ci gaba da samar da wutar lantarki.

An ƙera harsashi da masu musayar zafi na bututu don aikace-aikacen masana'antu masu mahimmanci, waɗanda ke nuna ƙira mai ƙarfi da kayan ƙima. Harsashi da tube evaporator ya yi fice a cikin ƙananan yanayin zafi, sanye take da harsashi na ƙarfe na carbon da bututun titanium, yana mai da shi manufa don tsarin ammonia{2} na tushen sanyi. Harsashi da na'urar bututu, maɓalli mai mahimmanci a cikin shuke-shuken wuta, suna amfani da bututun tagulla na admiralty (70/30 jan ƙarfe- nickel gami) da harsashi na ƙarfe na carbon don haɓaka haɓakar natsuwa a cikin zagayowar wutar tururi.

Cikakken Bayani

Fasalolin Evaporator

◆ Abu: Carbon karfe harsashi + titanium tubes
◆ Aikace-aikace: Ƙananan{0} sanyi sanyi (ammonia{1} tushen saitin)
◆ Performance: Dogara evaporation ga masana'antu sanyaya tafiyar matakai

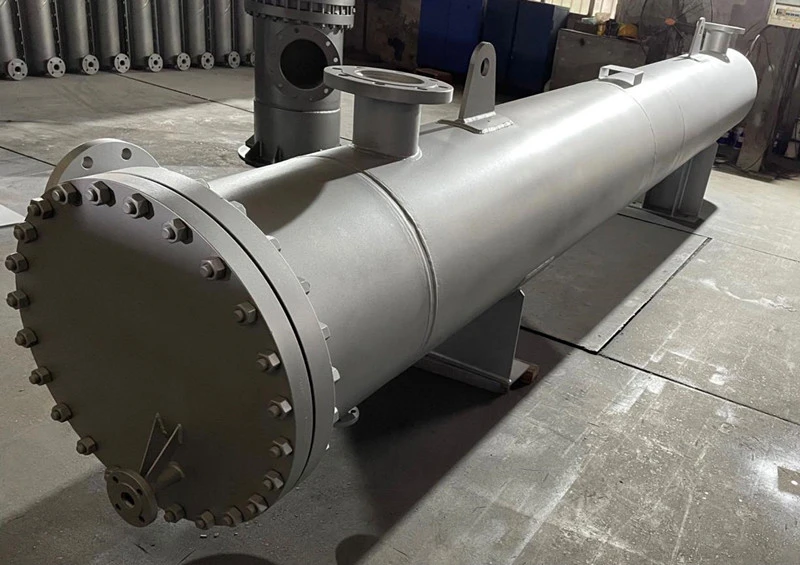

Siffofin Condenser

◆ Abu: Carbon karfe harsashi + admiralty tagulla bututu (70/30 jan karfe -nickel)
◆ Ƙimar Matsi: Har zuwa 2.5 MPa
◆ Yanayin Zazzabi: Har zuwa digiri 150
Tube Bundle: 19mm OD tubes, 25.4mm tazara ta tsakiya
◆ Wurin Canja wurin Zafi: 500-2000 m²
◆ Ƙarfin Tushen Huɗu: 50-200 kg/s
◆ Inganta Ingantawa: Yana rage matsi na turbine, yana haɓaka ƙarfin samar da wutar lantarki da 3-5%
◆ Layout: Tsare-tsare na tsaye don ƙananan filin ƙasa da matsakaicin aikin musayar zafi

Ƙayyadaddun bayanai

Siga	Evaporator	Condenser
Shell Material	Karfe Karfe	Karfe Karfe
Tube Material	Titanium	Admiralty Brass (70/30 Cu-Ni)
Tsananin Tsara	N/A (dangane da aikace-aikace)	2.5 MPa
Zazzabi Zane	N/A (ƙananan -mayar da hankali)	150 digiri
Tube Outer Diamita	N/A	19 mm ku
Tazarar Tube	N/A	25.4 mm
Wurin Canja wurin Zafi	N/A	500–2000 m²
Gudanar da Steam	N/A	50-200 kg/s (share tururi)

Yanayin aikace-aikace

◆ Evaporator: Na'urorin sanyaya abinci a cikin sarrafa abinci, tsire-tsire masu sinadarai, da wuraren ajiyar sanyi, musamman masu amfani da ammonia azaman firiji.

◆ Condenser: shuke-shuke samar da wutar lantarki (steam cycles), petrochemical masana'antu, da kuma masana'antu kayayyakin aiki da bukatar ingantaccen tururi condensation don inganta makamashi amfani.

Mabuɗin Amfani

◆ Gina Mai Dorewa:
Harsashin ƙarfe na carbon yana tabbatar da daidaiton tsari a ƙarƙashin matsanancin matsin lamba/zazzabi.
Bututun Titanium (mai fitar da iska) suna ba da juriya na lalata a cikin ƙananan yanayin zafi, m yanayi.
Copper - bututun nickel (condenser) suna ba da kyakkyawar canjin zafi da juriya ga ƙima.

◆ Inganta Haɓakawa:
Tsarin bututu na tsaye yana haɓaka canjin zafi yayin da rage sawun sawun.
Yana rage amfani da makamashi da kashi 3-5% a cikin zagayowar samar da wutar lantarki ta hanyar ingantacciyar iska.

◆ Amincewa:
Ya dace da ci gaba da aiki a cikin saitunan masana'antu masu nauyi{0}.
Injiniya don jure yanayi mai tsauri (misali, matsa lamba, kafofin watsa labarai masu lalata).

Yarda da Fasaha

◆ Kayan aiki sun dace da ka'idodin masana'antu don masu musayar zafi a cikin sassan firiji da wutar lantarki.
◆ Zane yana tabbatar da mafi kyawun aiki kamar yadda ASME ko kwatankwacin lambobin injiniya (akan buƙata).

Packaging & Logistics

◆ Standard marufi: PE bags + kariya padding + katako katako don teku / iska sufuri.
◆ Lokacin bayarwa: kwanaki 10-20 (wanda za'a iya sasantawa dangane da adadin tsari).
